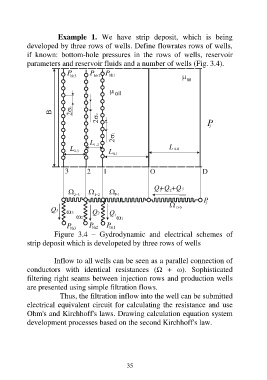

Example 1. We have strip deposit, which is being
developed by three rows of wells. Define flowrates rows of wells,
if known: bottom-hole pressures in the rows of wells, reservoir
parameters and reservoir fluids and a number of wells (Fig. 3.4).
P bh3 P bh2 P bh1  w

 oil

B 

P f

L 1 2-
L D-0
L 2 3-
L 0-1
3 2 1 О D

     F-1 Q+Q +Q3
1
2
P f
 D-0
Q3  Q2
 Q 1 
P bh3 P bh2 P bh1
Figure 3.4 – Gydrodynamic and electrical schemes of
strip deposit which is developeted by three rows of wells

Inflow to all wells can be seen as a parallel connection of
conductors with identical resistances (Ω + ω). Sophisticated
filtering right seams between injection rows and production wells
are presented using simple filtration flows.
Thus, the filtration inflow into the well can be submitted
electrical equivalent circuit for calculating the resistance and use
Ohm's and Kirchhoff's laws. Drawing calculation equation system
development processes based on the second Kirchhoff's law.
